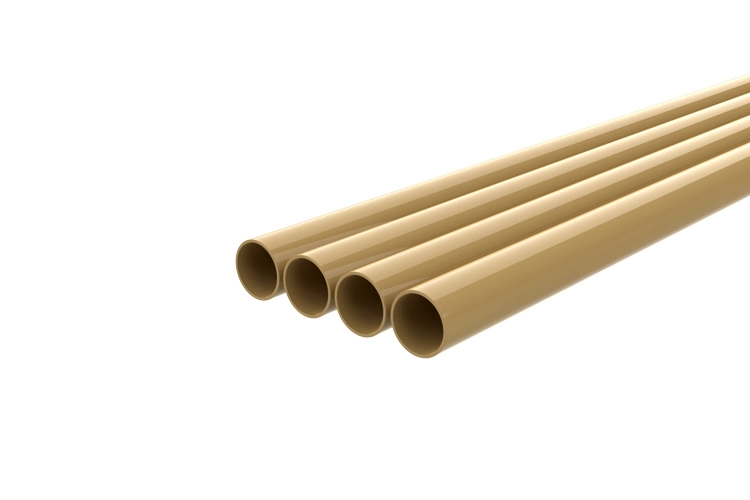

At PT&C, we leverage the advanced properties of PEEK (Polyether Ether Ketone) to deliver tubing solutions that excel in high-performance medical applications. PEEK is widely recognized for its unique combination of strength, biocompatibility, and flexibility, making it an ideal choice for demanding environments.
1. Superior Heat Resistance:
Our PEEK tubing withstands extreme temperatures, performing reliably up to 260°C, making it ideal for high-temperature sterilization methods and long-term implantable devices.
2. Low Friction and Wear:
PEEK's excellent sliding properties reduce friction, minimizing wear during use and extending the functional lifespan of medical devices.
3. Precision Extrusion:
Our tubing is manufactured with:
Diameters ranging from 0.4mm to 4mm
Wall Thicknesses from 0.05mm to 1mm
Tight tolerances of ±0.03mm for smaller sizes and ±0.05mm for larger sizes.
4. Smooth Surface Finish:
Our production process of the PEEK catheter ensures a defect-free surface, with imperfections controlled to less than 0.05mm², meeting the rigorous standards required by the medical device industry.
This combination of heat resistance, durability, and precision makes PT&C's PEEK tubing a preferred choice for demanding applications in medical technology.
| Inner diameter | 0.35~3.5mm (0.0138 ~ 0.1378 inch) |
| Out diameter | 0.5~4mm (0.0197 ~ 0.1575 inch) |
| Wall thickness | 0.1 ~ 0.8 mm (0.0039 ~ 0.0315 inch) |
| Tolerance | ± 0.03 mm (± 0.0012 inch) |
| ØE mm | Øi mm |
| 0.5 | 0.35 |
| 0.8 | 0.6 |
| 1 | 0.5 |
| 1 | 0.6 |
| 1.1 | 0.8 |
| 1.2 | 0.6 |
| 1.2 | 0.8 |
| 1.2 | 0.8 |
| 1.5 | 0.9 |
| 1.5 | 1 |
| 1.5 | 1.1 |
| 1.5 | 1.2 |
| 1.5 | 1.2 |
| 1.6 | 1.2 |
| 1.8 | 0.8 |
| 1.8 | 1.4 |
| 2 | 1 |
| 2 | 1.5 |
| 2 | 1.6 |
| 2 | 1.7 |
| 2.1 | 1.6 |
| 2.1 | 1.7 |
| 2.1 | 1.7 |
| 2.2 | 1.85 |
| 2.4 | 1.8 |
| 2.5 | 1 |
| 2.5 | 1.5 |
| 2.5 | 2 |
| 2.5 | 2 |
| 2.5 | 2.1 |
| 2.7 | 2 |
| 2.8 | 2.4 |
| 3 | 0.8 |
| 3 | 1 |
| 3 | 1.5 |
| 3 | 2 |
| 3 | 2.5 |
| 3.2 | 2.4 |
| 3.2 | 2.4 |
| 3.2 | 2.8 |
| 3.5 | 2 |
| 3.5 | 2.5 |
| 3.5 | 3 |
| 3.5 | 3.1 |
| 3.6 | 3 |
| 3.8 | 3.2 |
| 4 | 2 |
| 4 | 2.5 |
| 4 | 3 |
| 4 | 3.5 |
